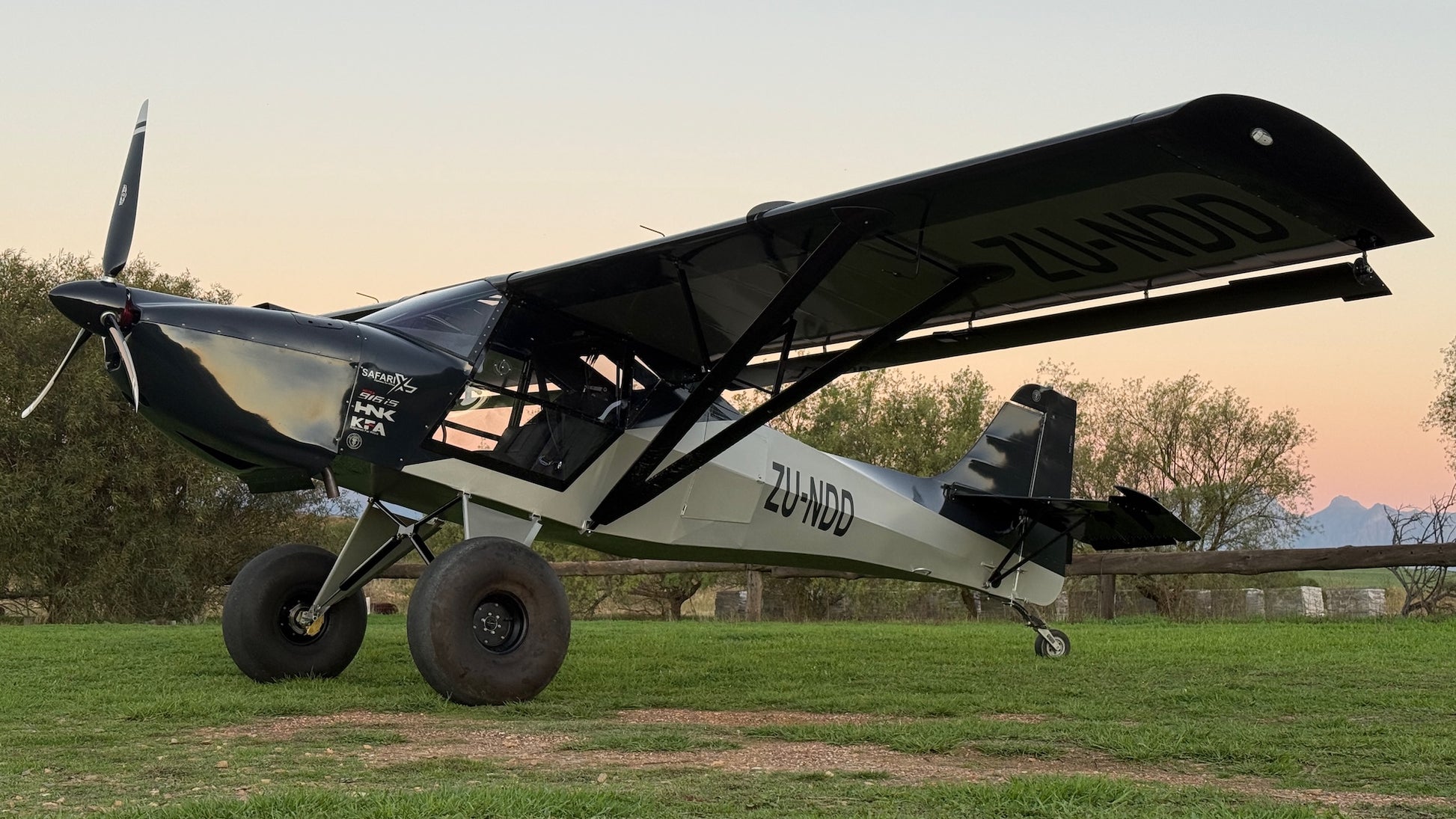

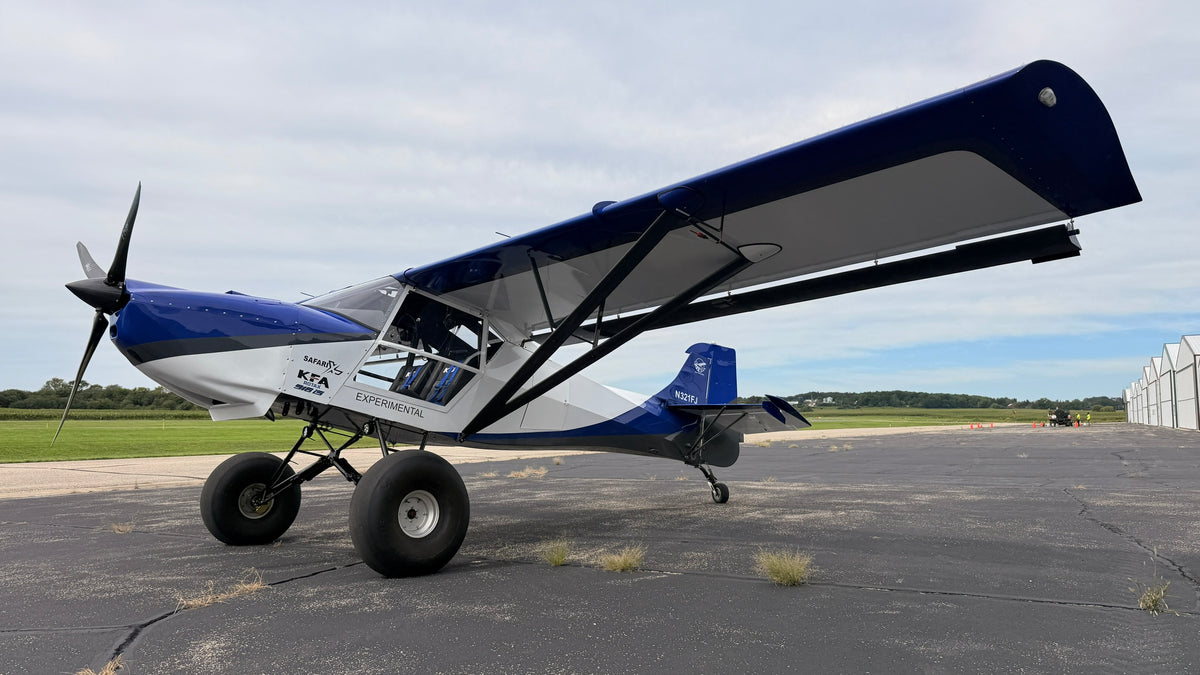

KFA Safari XL - Quick build Kit

What is included?

Delivery from KBUU to customer not included.

Wing QB - $86,000  The wing QB and rigging is included in our price for a standard kit.

Stage 1 - $102,000  includes the standard XL kit as well as the wing QB above. Save approximately 300-400hrs of building time and let the factory do the critical work for you!!!    Approximately 250 - 400hrs of work left. (Depending on your options)

Options listed below are for the Stage 1 QB options.

XL Firewall back

• Fuselage
• Carbon floorboards for cockpit and luggage, carbon glare shield, carbon centre console, carbon kick panels, carbon elevator trim tab.
• Carbon boot cowl
• Roof, turtle deck, butt-ribs and much more
• Control system including pulleys and cables for rudder.
• All hardware - bolts, nuts, washers, fittings and rod-ends.
• Fuselage stringers
• Seat, four point harness with fittings
• Electric trim servo (Does not include the button or indicator)
• Header tank with fuel low warning sensor installed
• Fuel valves and fuel lines from tanks to valves and header tank.
• Windscreen glass
• Door glass (Top and bottom)
• Roof and turtle deck windows
• Gas lifts for doors

Quick Build

• Floor boards and controls fitted
• Control travels set
• Luggage bay covered
• Butt ribs fitted
• Roof dry fitted
• Rudder and Horizontal stab ribs fitted
• Very little to do before covering.

Optional

• BRS brackets

Wings

• Including Quick build wings and wing rigging
• Flaperons dry-fitted and control travels set
• 2 x 17 gal fuel tanks
• Carbon leading edge cuff, wing tips and lift strut speed fairings
• Spars with brackets, rivets and bolts
• Lift struts

Landing gear

• Matco 8" rims
• Extended gear (4" lift)
• 27.5 x 8" bush wheels
• Dual piston brake callipers
• Complete KFA Buffalo suspension system with cabane
• Axles, bearings, bolts, nuts and other hardware

Covering kit

• KFA PU system- fabric, glue, pinked tapes, PU up to base color
  (If you choose to use a different covering system then KFA will credit you $1800)

Firewall Forward kit - Rotax 915 and 916iS (160hp)(Carbon)

• Bottom and top cowl
• Firewall engine mount
• Oil cooler and bracket
• Water cooler and bracket

• Naca duct for water cooler
• Naca for air intake
• Airfilter box with air filter

Optional (ordered separately)

• Oil and water hoses with fittings
• Fuel pumps (Andair)
• Fuel pre-filters and high pressure filter

• Carbon landing light holders for fitment in the cowl

More firewall forward engine options available. Please call

What is not included in our kits? (We can supply all these)

(You will get a discount if you buy these with your kit)

• Engine
• Propeller
• Avionics
• Upholstery (Leather and fabric choices)
• Wiring and electrical components (Switches, batteries etc)
• Paint
• Instrument panel cutting
• Firewall forward fuel and oil lines including fittings

Terms and Conditions apply - E&OE
